Feature
1. It do not need to install a driver, and it is truly PnP.
2. It is compatible with Windows, Linux, OS X operating systems
3. USB3.0, 300-350MB/s throughput and it is compatible with USB 2.0
4. The process of video and audio is done by the dongle and will not occupy the CPU.
5. It can capture one single channel HD HDMI video signals.
6. It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.
7. Support HDMI 2.0b and HDCP 2.2.

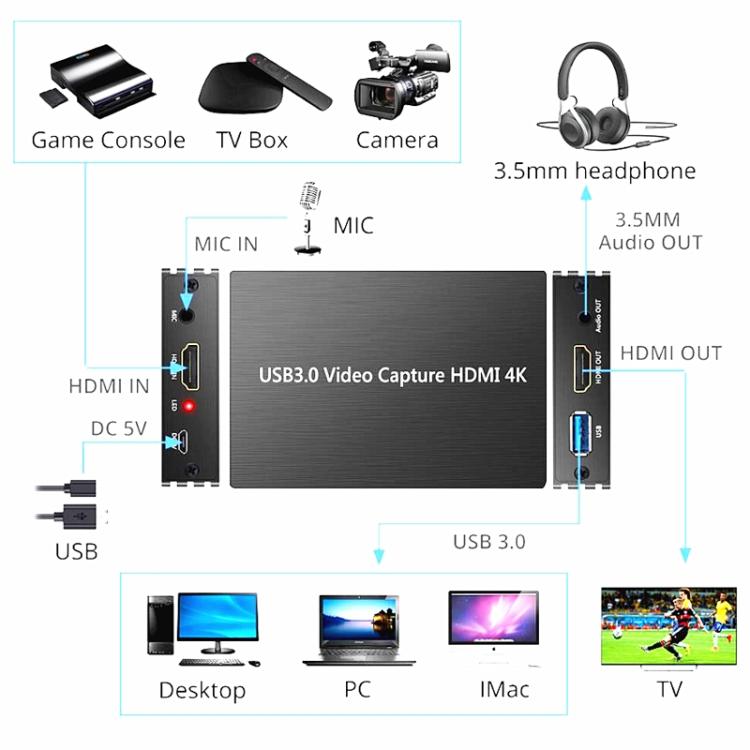

8. Support MIC input and audio output.
9. Support HDMI loop output 4Kp60.
Specification
1. Host Interface: USB3.0, 300-350MB/s, USB2.0, 40MB/s

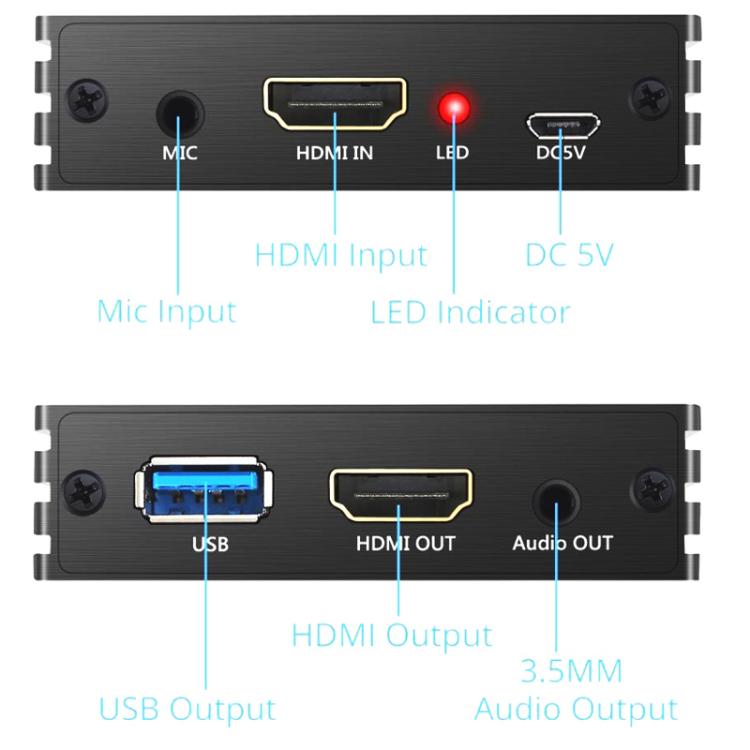

2. Input Interface: HDMI interface
3. HDMI Input:
Formats:480i,480p,576i,576p,720p,1080i,1080P,4Kp30,4Kp60
4. HDMI Output:
Formats:480i,480p,576i,576p,720p,1080i,1080P,4Kp30,4Kp60
5. USB 3.0 Output Formats Resolutions:360x240/640x480/720x480/720x576/768x576/800x60/1024x768/1280x720/1280x800/1280x960/1280x1024/1368x768/140x900/1600x1200/1680x1050/1920x1080/1920x1200/640x360/856x480/960x540/1024x576
6. Frame Rate:30/40/48/50/59.94/60 fps
7. Size:7x9cm
8. Weight:135g

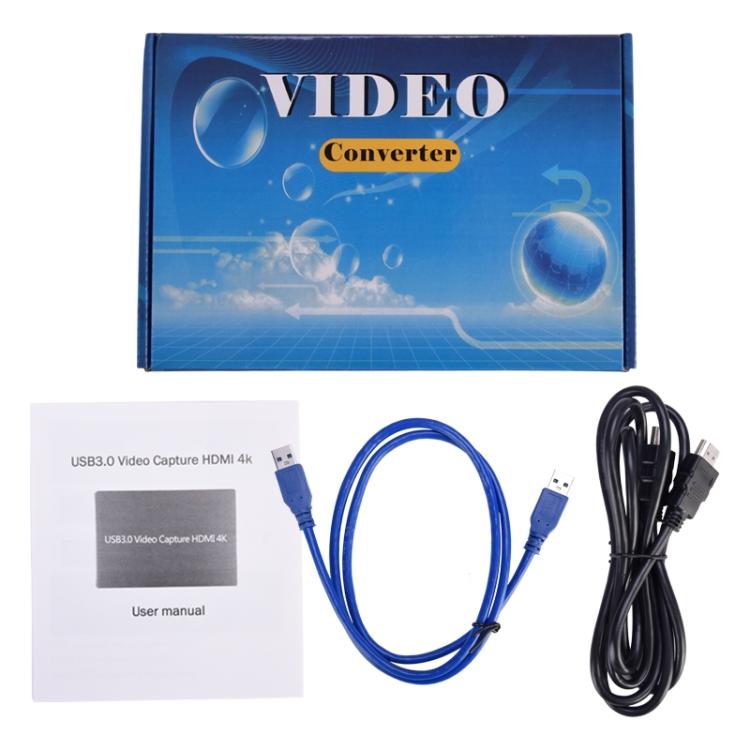

9. Accessories: host, USB 3.0 cable, HDMI cable, USB power cable, manual
Specification:
| Package Weight |
| One Package Weight |
0.48kgs / 1.05lb |
| One Package Size |
21.5cm * 15cm * 5.5cm / 8.46inch * 5.91inch * 2.17inch |
| Carton Weight |
17.60kgs / 38.80lb |
| Carton Size |
40cm * 30cm * 28cm / 15.75inch * 11.81inch * 11.02inch |
| Loading Container |
20GP: 793 cartons * 40 pcs = 31720 pcs
40HQ: 1842 cartons * 40 pcs = 73680 pcs
|
|
